Case file 02 of 06 Implantable Sensors · 1997-2001

Case file 02 · 1997-2001

The Accelerometer Line: teaching the pacemaker to feel motion

Implantable Sensors — Pressure, motion, and chemistry, measured from inside

  • U.S. 5,885,471 Shock resistant accelerometer for implantable medical device Mar. 23, 1999
  • U.S. 5,911,738 High output sensor and accelerometer implantable medical device Jun. 15, 1999
  • U.S. 6,038,475 High output sensor and accelerometer for implantable medical device Mar. 14, 2000
  • U.S. 6,216,537 Accelerometer for implantable medical device Apr. 17, 2001
Plate I U.S. 5,885,471 · Mar. 23, 1999 · FIGS. 7(a)-7(c)
Patent drawing, US5885471A: The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it.
The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it. Chosen as this file’s signature drawing.

The problemT1 · from the patentUS5885471A

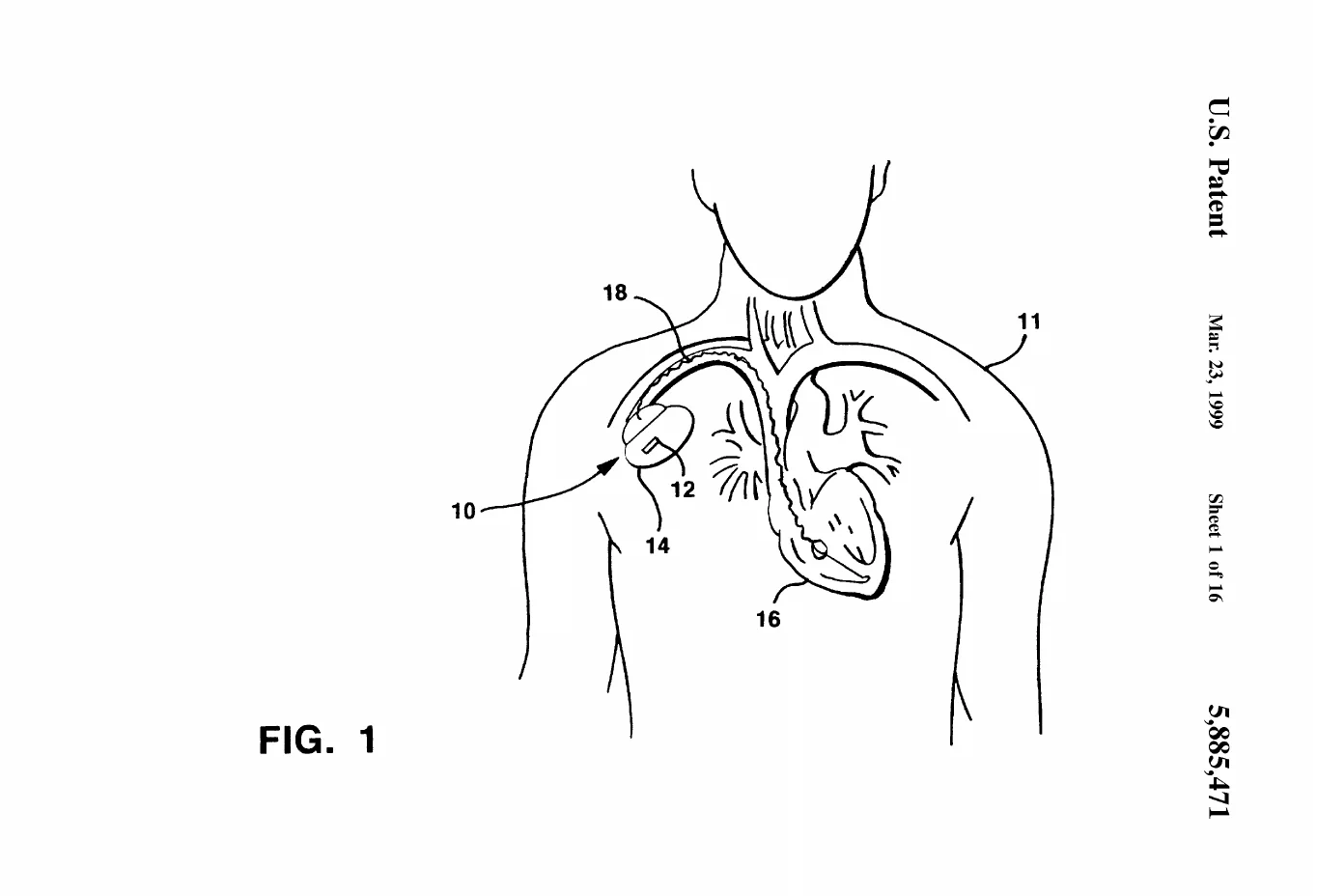

A rate-responsive pacemaker needs to know when its patient is active so it can raise the heart rate to match. The sensor of choice was a piezoelectric cantilever beam — a tiny diving board that generates voltage as it flexes with body motion. The trouble, per US5885471's background: prior-art beams were so fragile that dropping the device from a few feet could snap them, and the solder/epoxy bonding methods of the day caused yield losses and inconsistent output. A sensor destined to be sealed inside a human chest for a decade cannot be that delicate.

The principleT1 · from the patentUS5885471A

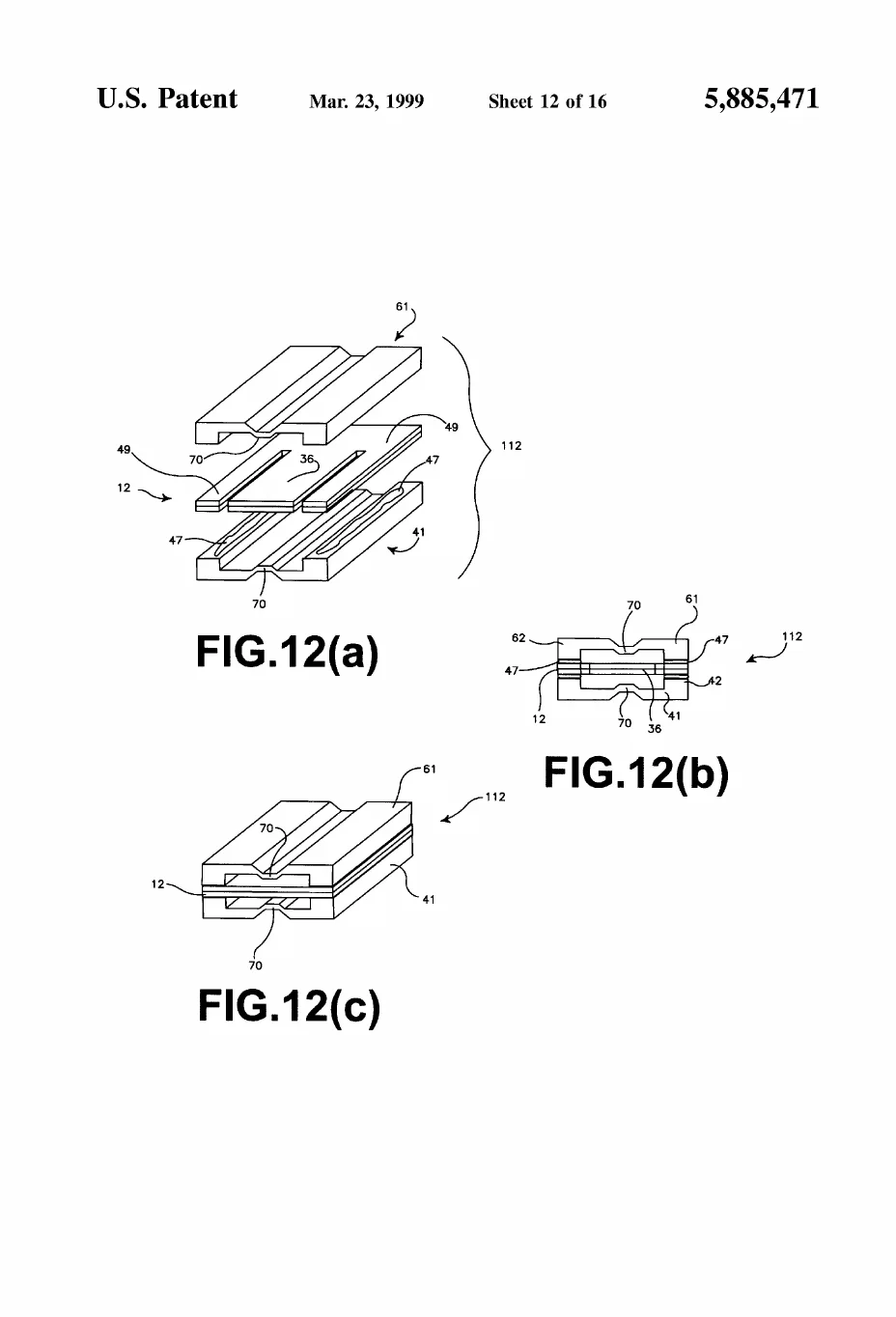

Piezoelectricity + mechanical over-travel protection. A piezoelectric sheet converts beam deflection (acceleration) directly into charge — no power needed to sense. The inventive step in US5885471 (D. Ruben, first-listed inventor) is claim 1's stop: a structure placed just above/below the beam's free end that lets it flex through its normal sensing range but arrests it before the deflection that would fracture it. Embodiments include a central rail stop (FIGS. 7a-c), foam-tape stops (FIGS. 11a-c), and damping gel (FIGS. 16a-c) — mechanical airbags for a sensor the size of a grain of rice.

Plain-English registerT3 · interpretationconfidence: high

Think of a diving board over a pool: flex is the signal. This invention adds a hand a half-inch under the board — invisible to a normal dive, but it catches the board before a cannonball snaps it.

The orientation problemT1 · from the patentUS6216537B1

A second constraint: a beam accelerometer senses along one axis, and the clinically useful axis points into/out of the patient's chest — but the sensor mounts flat on a circuit board, which naturally aligns its sensitivity parallel to the board. US6216537's answer is a surface-mount package with multilayer conductive end caps that let the sensing element stand so its sensitivity axis is perpendicular to the board (claim 1), while remaining mass-producible and testable after assembly — sensor physics reconciled with electronics manufacturing.

Verified real-world contextT2 · external source

Inference: where his work sits in that storyT3 · interpretationconfidence: medium

These four patents (1997–2001) land exactly in Medtronic's piezo→accelerometer transition era and solve its two practical blockers — survivability (US5885471) and manufacturable orientation (US6216537). It is reasonable to say this work helped carry activity sensing from lab bench to production pacemakers of that generation. Not claimed: that these specific patents are practiced in any named current product — no public source confirms that, and we don't assert it.

Set-piece note (for Presentation)T3 · interpretation

The natural animation: a beam flexing gently with a walking figure's gait → device drops → beam whips toward fracture → the stop catches it. One motion sequence teaches problem, principle, and novelty in ~6 seconds.

Reading the badgesT1 · from the patent is drawn from the grant itself. T2 · external source is verified against a cited outside source. T3 · interpretation is our reading, with a stated confidence — never presented as fact.
