The Accelerometer Line: teaching the pacemaker to feel motion

US5885471AUS5911738AUS6038475AUS6216537B1

Exhibit 02.0 US 5,885,471 FIGS. 7(a)-7(c)
Patent drawing, FIGS. 7(a)-7(c) of US5885471A: The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it.
FIGS. 7(a)-7(c) · US5885471A The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it.

The problemT1 · from the patentUS5885471A

A rate-responsive pacemaker needs to know when its patient is active so it can raise the heart rate to match. The sensor of choice was a piezoelectric cantilever beam — a tiny diving board that generates voltage as it flexes with body motion. The trouble, per US5885471's background: prior-art beams were so fragile that dropping the device from a few feet could snap them, and the solder/epoxy bonding methods of the day caused yield losses and inconsistent output. A sensor destined to be sealed inside a human chest for a decade cannot be that delicate.

The principleT1 · from the patentUS5885471A

Piezoelectricity + mechanical over-travel protection. A piezoelectric sheet converts beam deflection (acceleration) directly into charge — no power needed to sense. The inventive step in US5885471 (D. Ruben, first-listed inventor) is claim 1's stop: a structure placed just above/below the beam's free end that lets it flex through its normal sensing range but arrests it before the deflection that would fracture it. Embodiments include a central rail stop (FIGS. 7a-c), foam-tape stops (FIGS. 11a-c), and damping gel (FIGS. 16a-c) — mechanical airbags for a sensor the size of a grain of rice.

Plain-English registerT3 · interpretationconfidence: high

Think of a diving board over a pool: flex is the signal. This invention adds a hand a half-inch under the board — invisible to a normal dive, but it catches the board before a cannonball snaps it.

The orientation problemT1 · from the patentUS6216537B1

A second constraint: a beam accelerometer senses along one axis, and the clinically useful axis points into/out of the patient's chest — but the sensor mounts flat on a circuit board, which naturally aligns its sensitivity parallel to the board. US6216537's answer is a surface-mount package with multilayer conductive end caps that let the sensing element stand so its sensitivity axis is perpendicular to the board (claim 1), while remaining mass-producible and testable after assembly — sensor physics reconciled with electronics manufacturing.

Verified real-world contextT2 · external source

Inference: where his work sits in that storyT3 · interpretationconfidence: medium

These four patents (1997–2001) land exactly in Medtronic's piezo→accelerometer transition era and solve its two practical blockers — survivability (US5885471) and manufacturable orientation (US6216537). It is reasonable to say this work helped carry activity sensing from lab bench to production pacemakers of that generation. Not claimed: that these specific patents are practiced in any named current product — no public source confirms that, and we don't assert it.

Set-piece note (for Presentation)T3 · interpretation

The natural animation: a beam flexing gently with a walking figure's gait → device drops → beam whips toward fracture → the stop catches it. One motion sequence teaches problem, principle, and novelty in ~6 seconds.

Supporting plates

drawing sheets · public domain
Exhibit 02.1 US 5,885,471 FIG. 1
Patent drawing, FIG. 1 of US5885471A: A cutaway outline of a human torso with the implanted pacemaker in the chest and its lead snaking through a vein into the heart, setting the clinical scene for where the sensor lives.
FIG. 1 · US5885471A A cutaway outline of a human torso with the implanted pacemaker in the chest and its lead snaking through a vein into the heart, setting the clinical scene for where the sensor lives.
Exhibit 02.2 US 5,885,471 FIG. 2

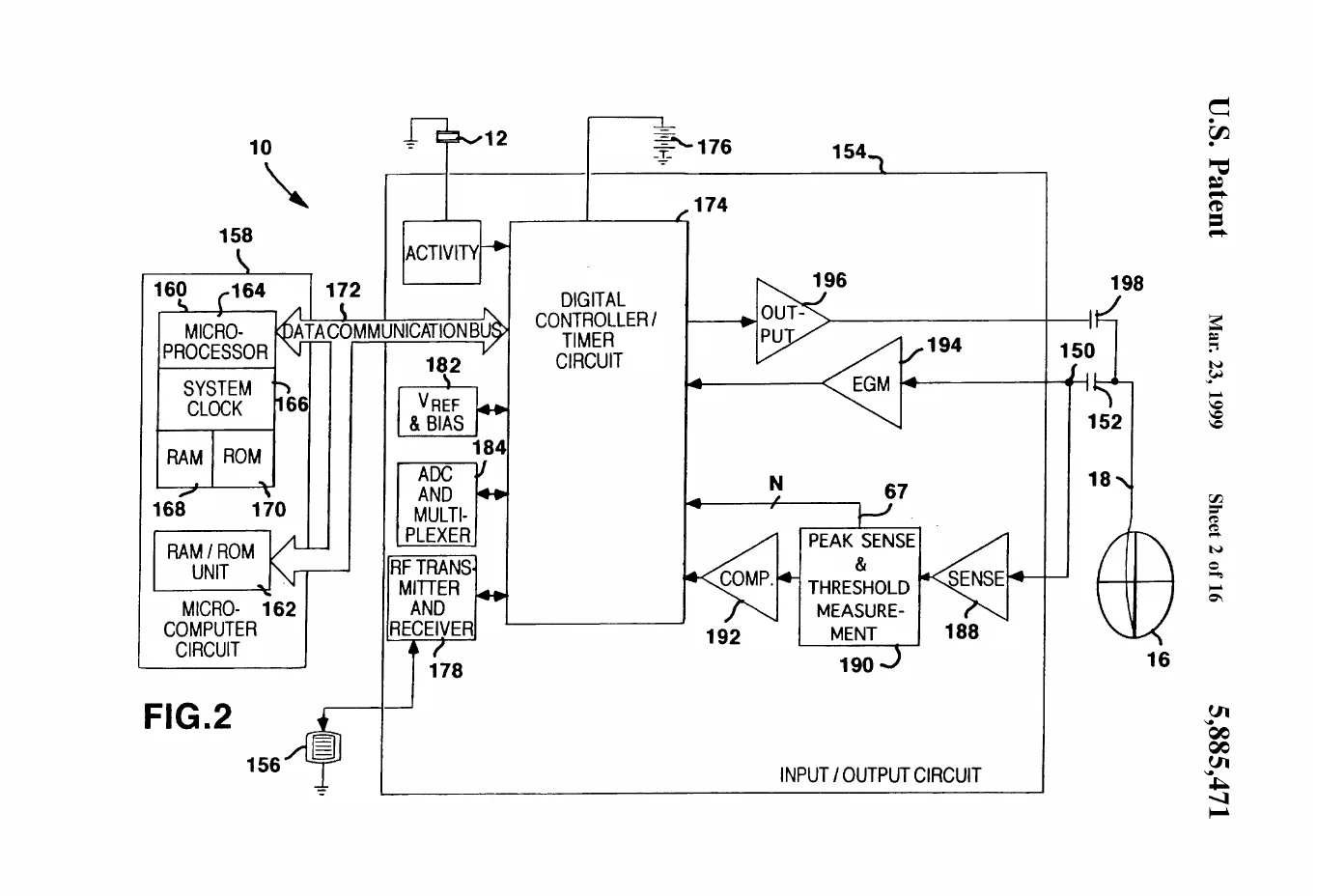

Patent drawing, FIG. 2 of US5885471A: An electrical block diagram of the pacemaker's internals — microcomputer, digital controller/timer, sense and output amplifiers, RF telemetry, and the activity (accelerometer) block wired into the pacing loop.
FIG. 2 · US5885471A An electrical block diagram of the pacemaker's internals — microcomputer, digital controller/timer, sense and output amplifiers, RF telemetry, and the activity (accelerometer) block wired into the pacing loop.
Exhibit 02.3 US 6,216,537 FIG. 1

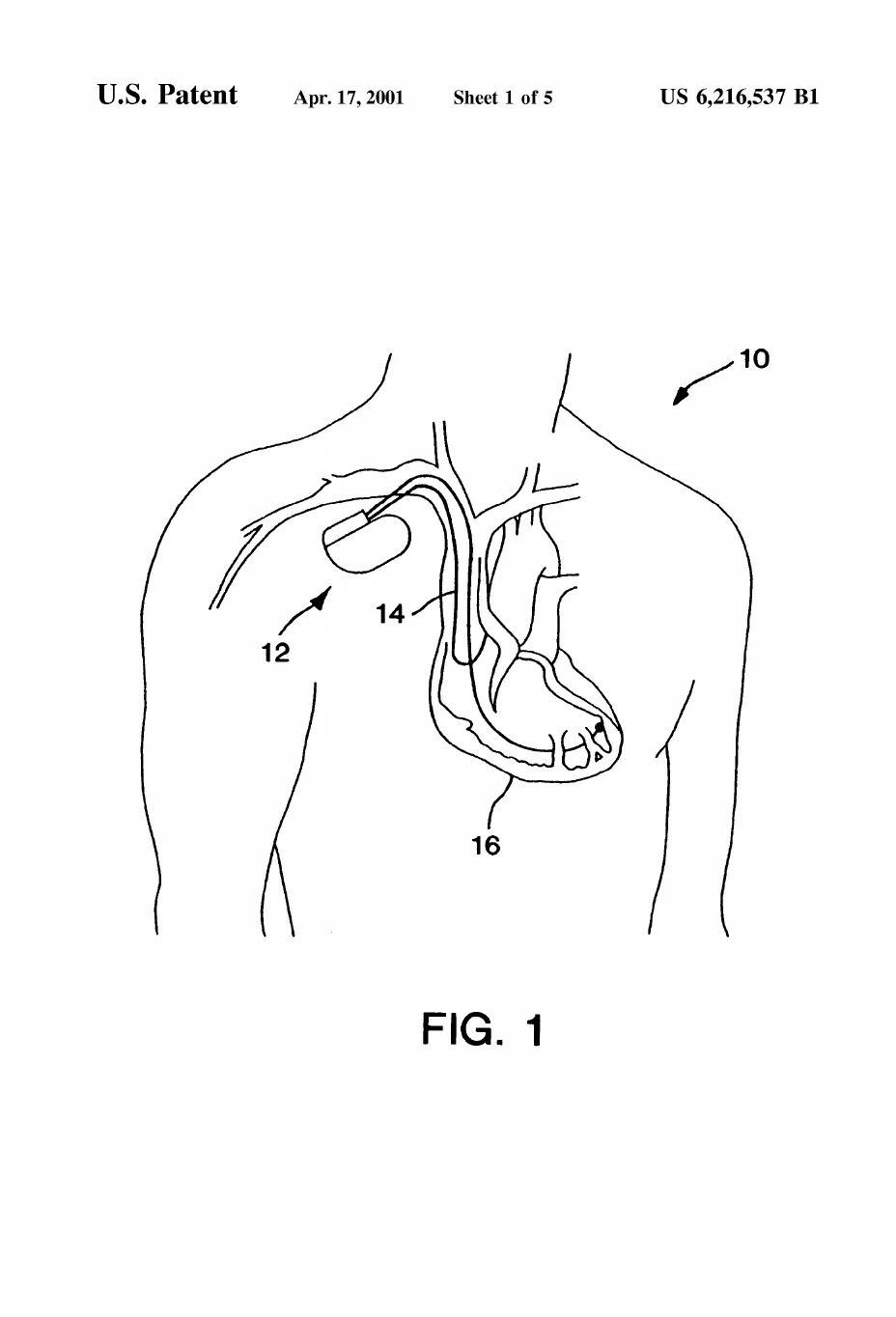

Patent drawing, FIG. 1 of US6216537B1: A human torso outline with the implanted pacemaker under the collarbone and its lead running through a vein into the heart, setting the medical context.
FIG. 1 · US6216537B1 A human torso outline with the implanted pacemaker under the collarbone and its lead running through a vein into the heart, setting the medical context.
Exhibit 02.4 US 6,216,537 FIG. 2

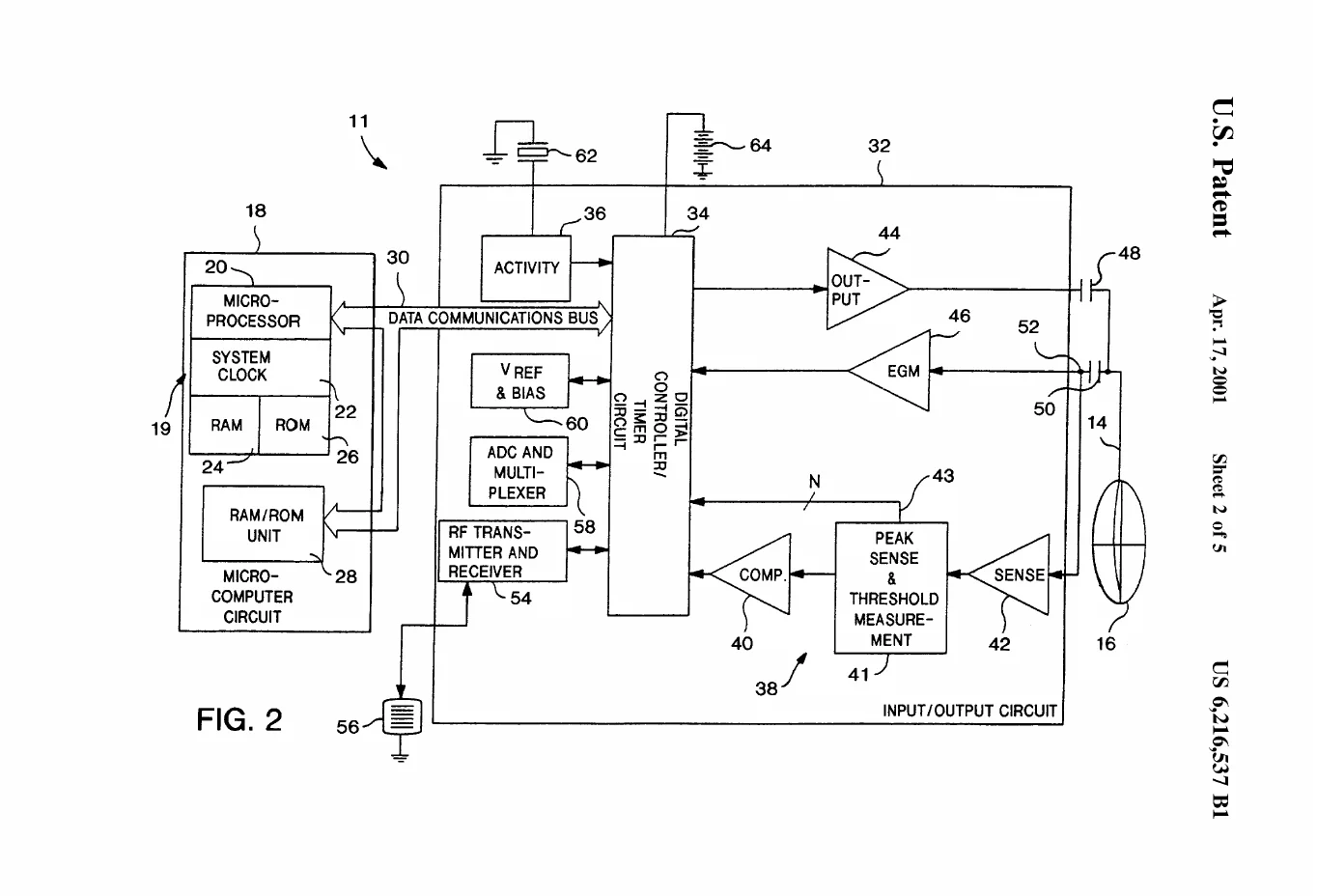

Patent drawing, FIG. 2 of US6216537B1: A block diagram of the pacemaker's electronics — microprocessor, digital controller/timer, sense and output amplifiers, the activity-sensor block, ADC, and RF telemetry connected over a data bus.
