Deep dive 03 / 06 Laser Materials Processing 2000-2025

The Laser Craft: light as a precision tool

US6501043B1US6717100B2US7872208B2US9171721B2US8796109B2US10124559B2US10981355B2US12454117B2US11999014B2US11548092B2US11969821B2

Exhibit 03.0 US 6,501,043 FIG. 9
Patent drawing, FIG. 9 of US6501043B1: A full cross-sectional schematic of the welding apparatus, tracing the laser beam from its source through a turning mirror and focusing lens down a conical housing and out through the bond head's aperture onto the ribbon-and-pad joint.
FIG. 9 · US6501043B1 A full cross-sectional schematic of the welding apparatus, tracing the laser beam from its source through a turning mirror and focusing lens down a conical housing and out through the bond head's aperture onto the ribbon-and-pad joint.

The arcT3 · interpretationconfidence: high

Eleven grants over twenty-five years, all one discipline: using focused light to join, cut, and texture materials that conventional processes would damage. It begins with welding a ribbon and ends with atomic-scale bonds co-invented with Corning. This is the corpus's craft thread — the hands, where the feedthrough line is the cathedral those hands built.

Where it starts: the vibration problemT1 · from the patentUS6501043B1

Microelectronic connections were made by ultrasonic/thermosonic bonding — literally scrubbing parts together at high frequency. US6501043's background names the failure: vibration is "not well suited to bonding less rigid... structures," shakes parts out of position, and yields "weaker and inconsistent" bonds, while restricting usable metals. In a device where one bad joint is a surgery, that's intolerable.

The founding moveT1 · from the patentUS6501043B1

Sole inventor, claim 1: thread the ribbon under a bond head, then fire a laser through an aperture in the bond head itself, melting ribbon and pad into a single weld nugget — no vibration, no material restrictions, minimal tool wear; fiber-deliverable. The bond head holds; the light joins. Google Patents lists 35 citing patents.

Where it leadsT1 · from the patentUS10124559B2

The endpoint (with Corning, US10124559 → US12454117): bond sapphire directly to titanium — transparent to opaque, insulator to metal — without the 600–1000 °C furnace such joints normally demand. The beam passes through the sapphire, deposits its energy at the interface, and forms a diffusion bond thinner than 1000 nanometers. "Kinetically limited" is the key idea: the pulse is too brief for heat to migrate, so diffusion happens only in that nano-zone — the parts never really get hot. Named applications reach past medical packaging to vacuum windows, photonics, even spacecraft. Alongside: laser-assisted direct bonding (US9171721), thin-film intermediate bonding (US8796109), two-beam laser cutting (US11999014), and underwater pulsed surface texturing (US11548092/US11969821).

Plain-English registerT3 · interpretationconfidence: high

Twenty-five years of the same magic trick at ever-smaller scale: get the heat exactly where the joint is and nowhere else. First a spot-weld through a tool's eye; finally, a bond a hundredth of a hair thick between a gem and a metal — made with a flash too fast for the heat to wander.

Cross-industry signalT2 · external source

The Corning co-assignment (US10124559, US10981355, US12454117 list both Medtronic, Inc. and Corning Incorporated as assignees — visible on the patents themselves) is the corpus's clearest external-validation marker: a materials-science giant putting its name beside his on the invention.

Set-piece note (for Presentation)T3 · interpretation

A single beam of light travels the timeline: 2000 — threading a bond head's eye to weld a ribbon; 2010 — sweeping a seam to fuse substrates; 2018 — one flash freezing into a nanometer bond between sapphire and titanium, shown at molecular zoom. The beam is the protagonist; the years are its footsteps.

Supporting plates

drawing sheets · public domain
Exhibit 03.1 US 6,501,043 FIG. 1, FIG. 8

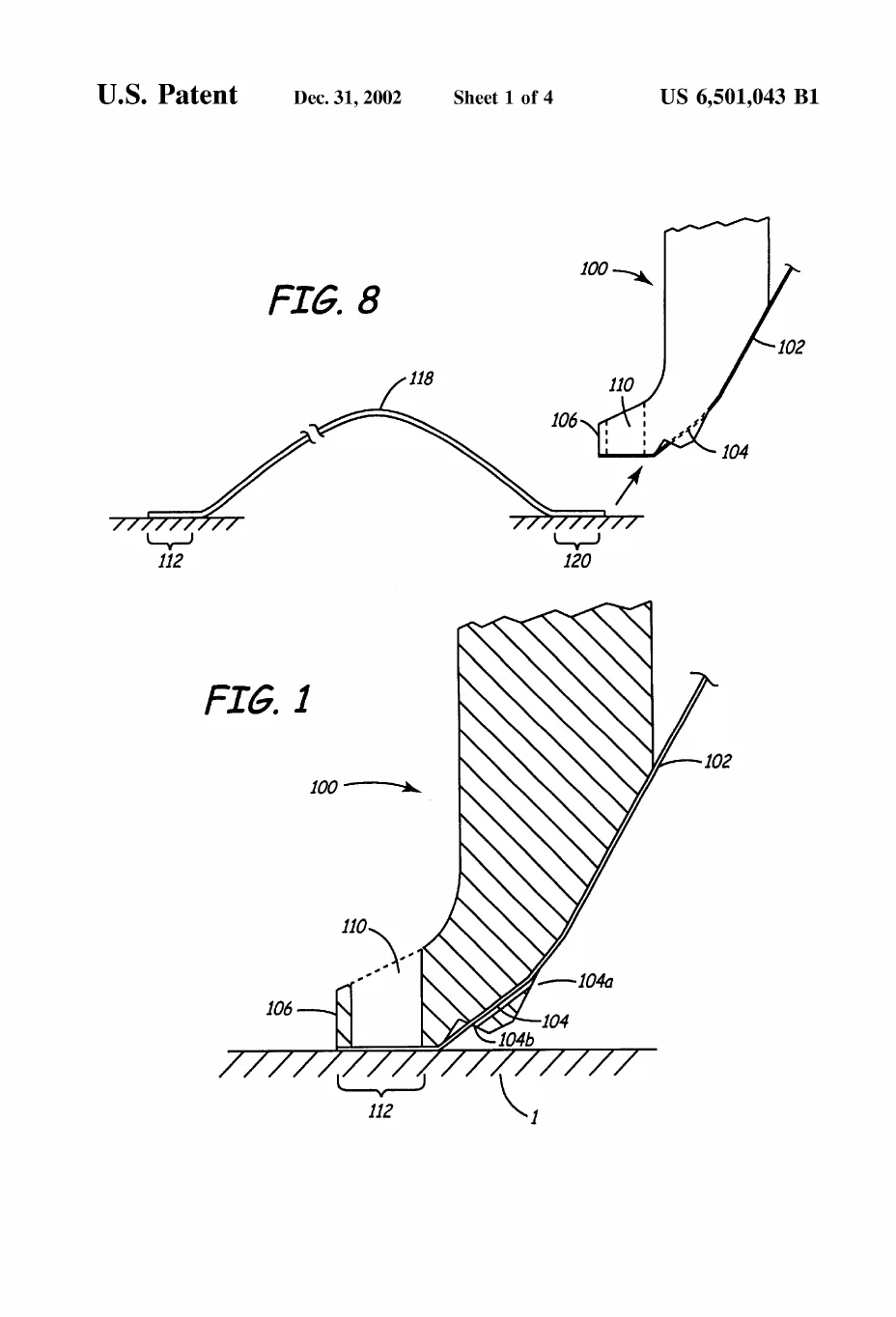

Patent drawing, FIG. 1, FIG. 8 of US6501043B1: A cross-section of the bond-head foot pressing a metal ribbon onto its pad with the laser aperture and forming weld nugget visible beneath it, plus a view of the finished ribbon arching between its two bonded pads.
FIG. 1, FIG. 8 · US6501043B1 A cross-section of the bond-head foot pressing a metal ribbon onto its pad with the laser aperture and forming weld nugget visible beneath it, plus a view of the finished ribbon arching between its two bonded pads.
Exhibit 03.2 US 6,501,043 FIG. 2, FIG. 3, FIG. 4

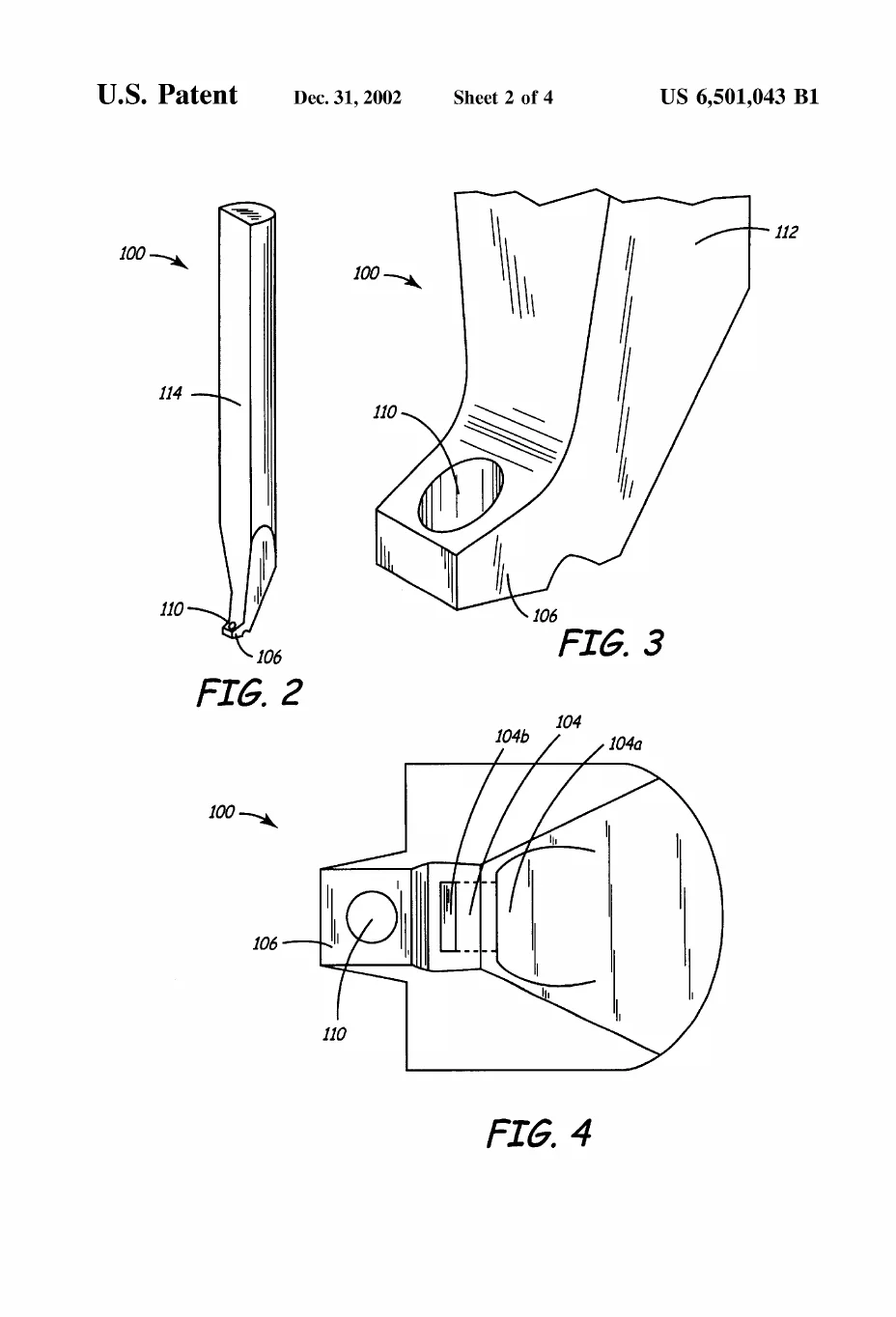

Patent drawing, FIG. 2, FIG. 3, FIG. 4 of US6501043B1: Perspective and magnified close-up views of the bonding tool itself, revealing the aperture bored straight through its foot — the eye the laser fires through — and the weld region seen through that opening.
FIG. 2, FIG. 3, FIG. 4 · US6501043B1 Perspective and magnified close-up views of the bonding tool itself, revealing the aperture bored straight through its foot — the eye the laser fires through — and the weld region seen through that opening.
Exhibit 03.3 US 10,124,559 FIG. 1

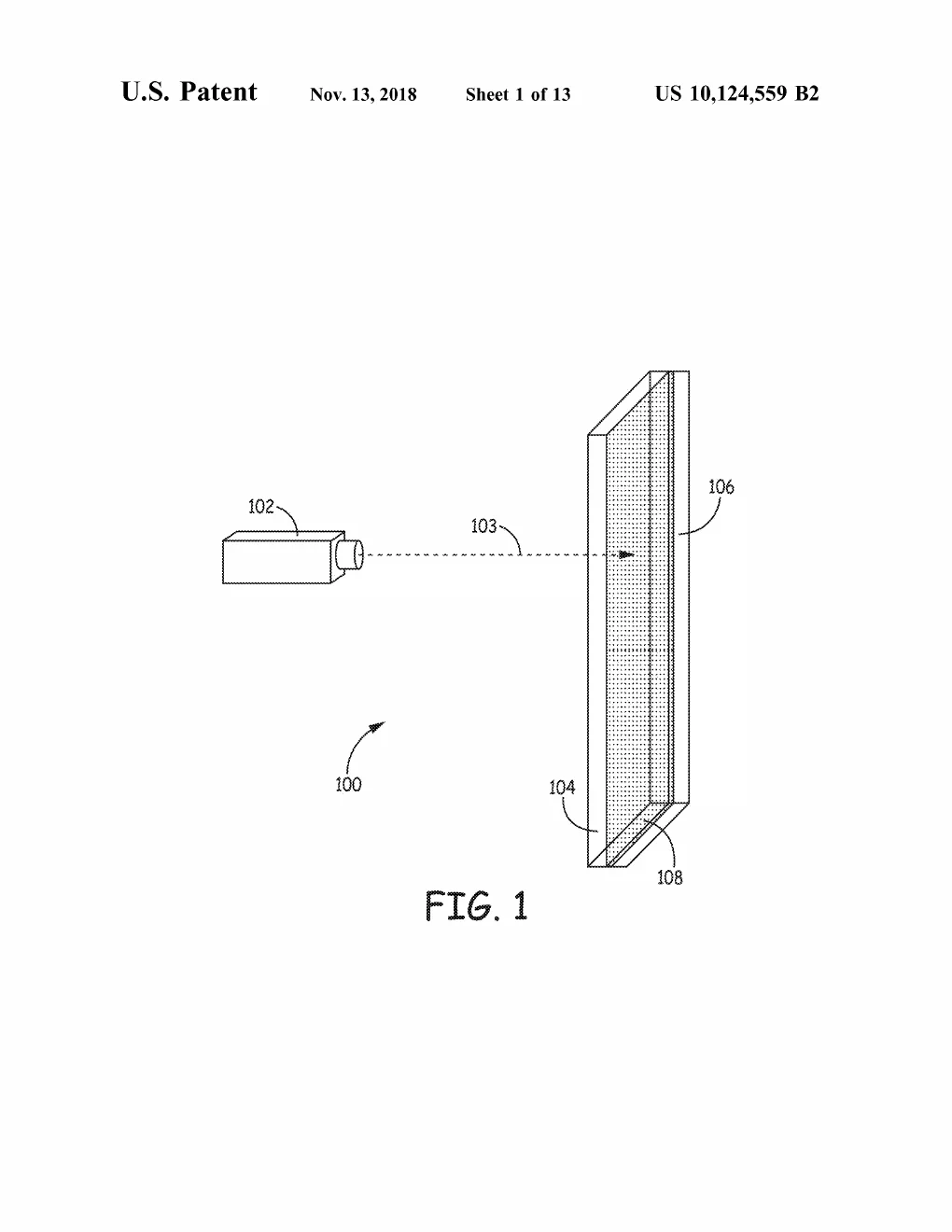

Patent drawing, FIG. 1 of US10124559B2: A perspective view of the core setup: a laser unit fires its beam through a transparent sapphire sheet that is stacked face-to-face against a titanium plate, so the light lands at the hidden interface between the two.
FIG. 1 · US10124559B2 A perspective view of the core setup: a laser unit fires its beam through a transparent sapphire sheet that is stacked face-to-face against a titanium plate, so the light lands at the hidden interface between the two.
Exhibit 03.4 US 10,124,559 FIGS. 2-3

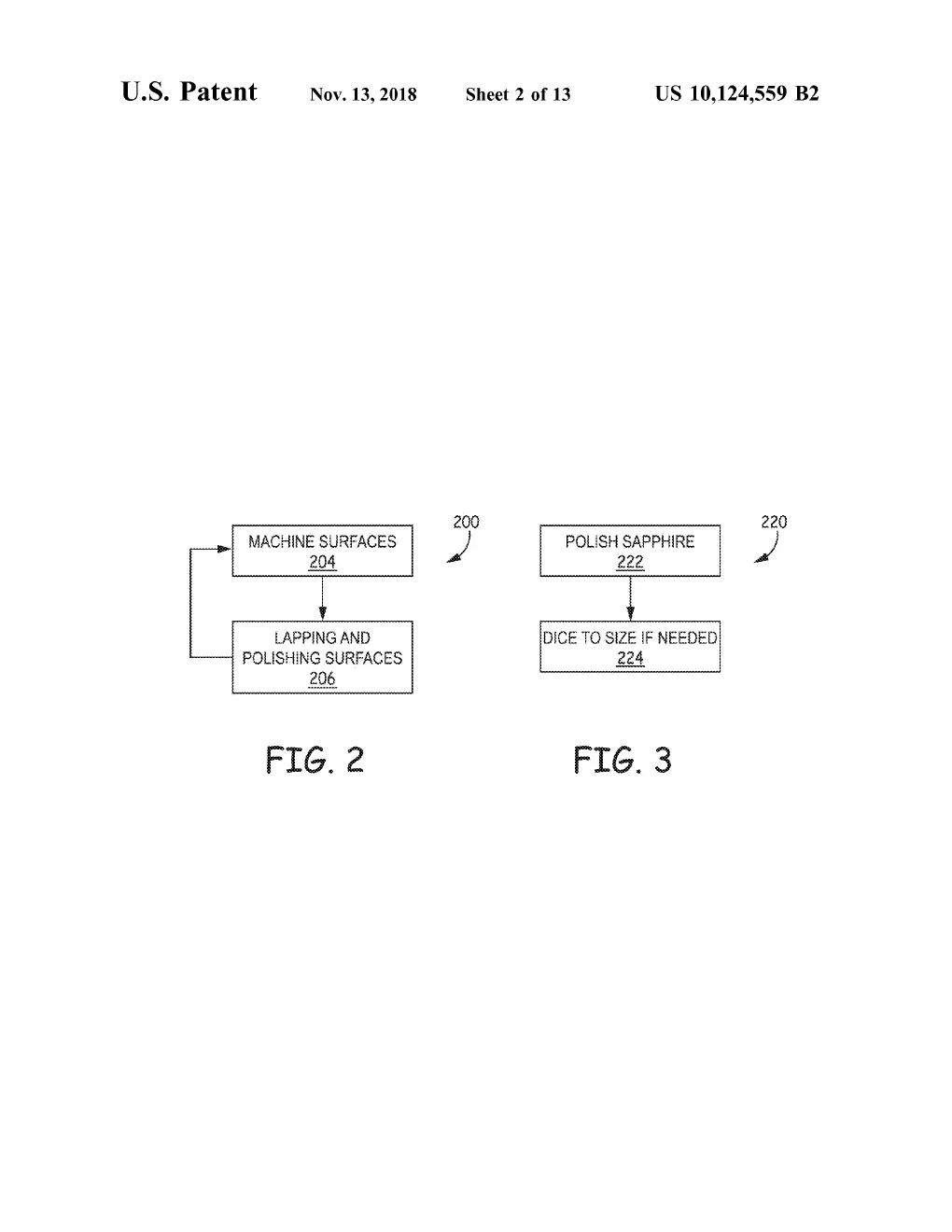

Patent drawing, FIGS. 2-3 of US10124559B2: Two short flowcharts of surface preparation: machining then lapping/polishing the metal surfaces, and polishing the sapphire then dicing it to size.
FIGS. 2-3 · US10124559B2 Two short flowcharts of surface preparation: machining then lapping/polishing the metal surfaces, and polishing the sapphire then dicing it to size.
Reading the badges

T1 comes from the patent document itself. T2 is verified against a cited external source. T3 is interpretation, labeled with confidence — never presented as fact.
