The Accelerometer Line: teaching the pacemaker to feel motion

US 5,885,471US 5,911,738US 6,038,475US 6,216,537

Yellow lithography light, bunny suit, a finished wafer in gloved hands — the fabrication world the accelerometer line lives in. — Photo: U.S. Department of Energy / Lawrence Livermore National Laboratory, public domain

The problemT1 · from the patentUS5885471A

A rate-responsive pacemaker needs to know when its patient is active so it can raise the heart rate to match. The sensor of choice was a piezoelectric cantilever beam — a tiny diving board that generates voltage as it flexes with body motion. The trouble, per US5885471's background: prior-art beams were so fragile that dropping the device from a few feet could snap them, and the solder/epoxy bonding methods of the day caused yield losses and inconsistent output. A sensor destined to be sealed inside a human chest for a decade cannot be that delicate.

The principleT1 · from the patentUS5885471A

Piezoelectricity + mechanical over-travel protection. A piezoelectric sheet converts beam deflection (acceleration) directly into charge — no power needed to sense. The inventive step in US5885471 (D. Ruben, first-listed inventor) is claim 1's stop: a structure placed just above/below the beam's free end that lets it flex through its normal sensing range but arrests it before the deflection that would fracture it. Embodiments include a central rail stop (FIGS. 7a-c), foam-tape stops (FIGS. 11a-c), and damping gel (FIGS. 16a-c) — mechanical airbags for a sensor the size of a grain of rice.

Plain-English registerT3 · interpretationconfidence: high

Think of a diving board over a pool: flex is the signal. This invention adds a hand a half-inch under the board — invisible to a normal dive, but it catches the board before a cannonball snaps it.

Piezo cantilever — flex is the signal normal sensing: a degree of sway · a drop from table height: caught The stop arrests the beam before the flex that would fracture it
Set-piece · the stop that saves the beam

The claimed mechanism of US 5,885,471, animated: the piezoelectric cantilever flexes gently — that flex is the signal — until a shock swings it hard, and the stop rail catches it just short of the deflection that would snap it. Static view: the beam resting on its stop, the catch made.

The orientation problemT1 · from the patentUS6216537B1

A second constraint: a beam accelerometer senses along one axis, and the clinically useful axis points into/out of the patient's chest — but the sensor mounts flat on a circuit board, which naturally aligns its sensitivity parallel to the board. US6216537's answer is a surface-mount package with multilayer conductive end caps that let the sensing element stand so its sensitivity axis is perpendicular to the board (claim 1), while remaining mass-producible and testable after assembly — sensor physics reconciled with electronics manufacturing.

Verified real-world contextT2 · external source

Inference: where his work sits in that storyT3 · interpretationconfidence: medium

These four patents (1997–2001) land exactly in Medtronic's piezo→accelerometer transition era and solve its two practical blockers — survivability (US5885471) and manufacturable orientation (US6216537). It is reasonable to say this work helped carry activity sensing from lab bench to production pacemakers of that generation. Not claimed: that these specific patents are practiced in any named current product — no public source confirms that, and we don't assert it.

Drawing, meet reality

The claim beside the fire

Multicrystalline silicon wafer with iridescent silicon-nitride thin film

Multicrystalline silicon wafer with iridescent silicon-nitride thin film. A real wafer under a nanometers-thin film, iridescent where the thickness varies — the material the sensor blanks are diced from.

Photo: Radiotrefoil, via Wikimedia Commons, CC BY-SA 4.0

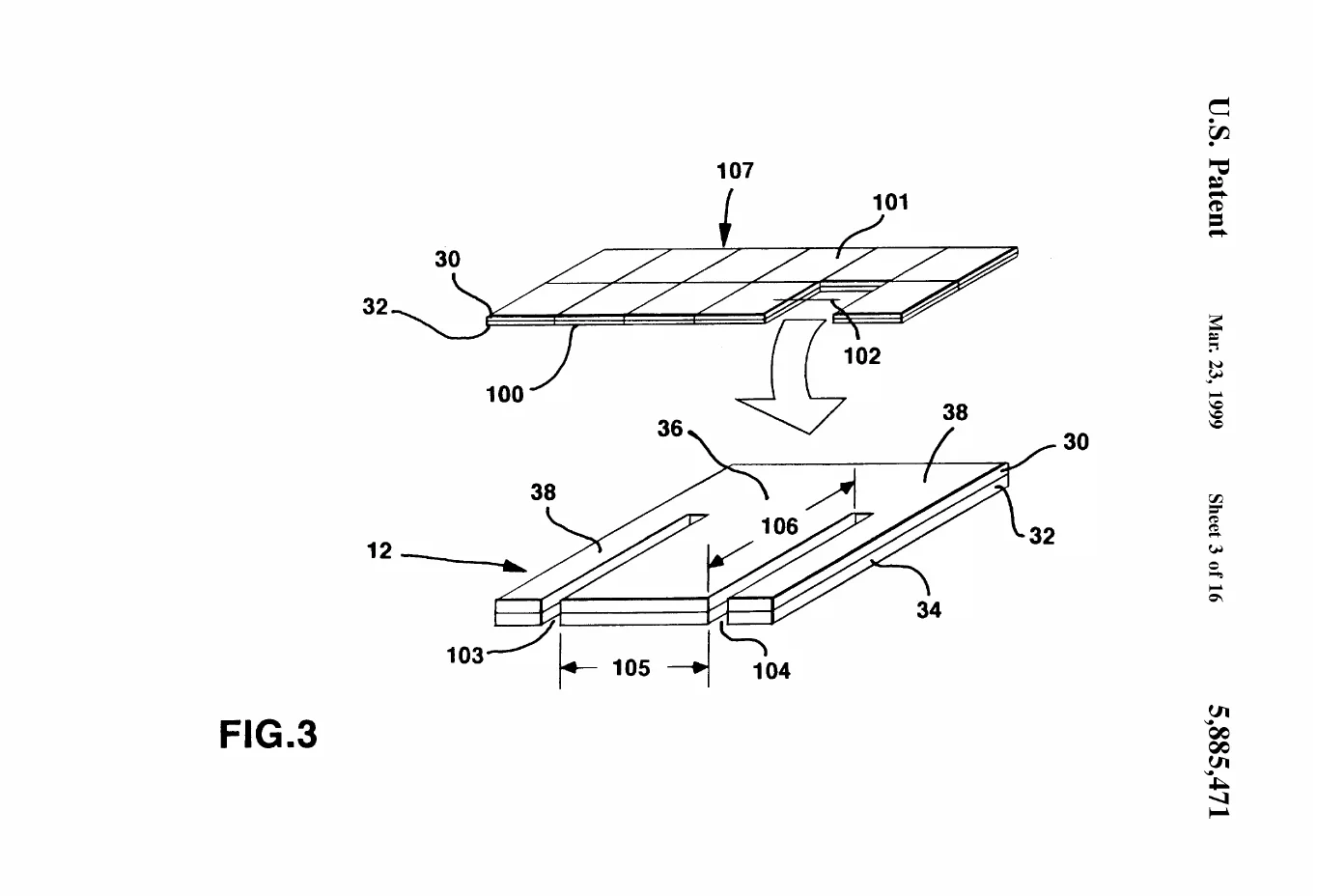

A perspective view of a piezoelectric wafer scored into a grid of many sensor blanks, with a blow-up arrow pulling out one diced element to reveal its two slender cantilever beam arms and the tiny gaps that define their flex range.

US 5,885,471 · FIG. 3 — A perspective view of a piezoelectric wafer scored into a grid of many sensor blanks, with a blow-up arrow pulling out one diced element to reveal its two slender cantilever beam arms and the tiny gaps that define their flex range.

United States patent drawing, public domain.

The wafer and its drawing: FIG. 3 scores a piezoelectric wafer into a grid of sensor blanks, one pulled out to show its cantilever arms — the diving boards this chapter protects.

From the fire

The record in light

Monocrystalline silicon ingot (Czochralski boule) with seed neck, museum display

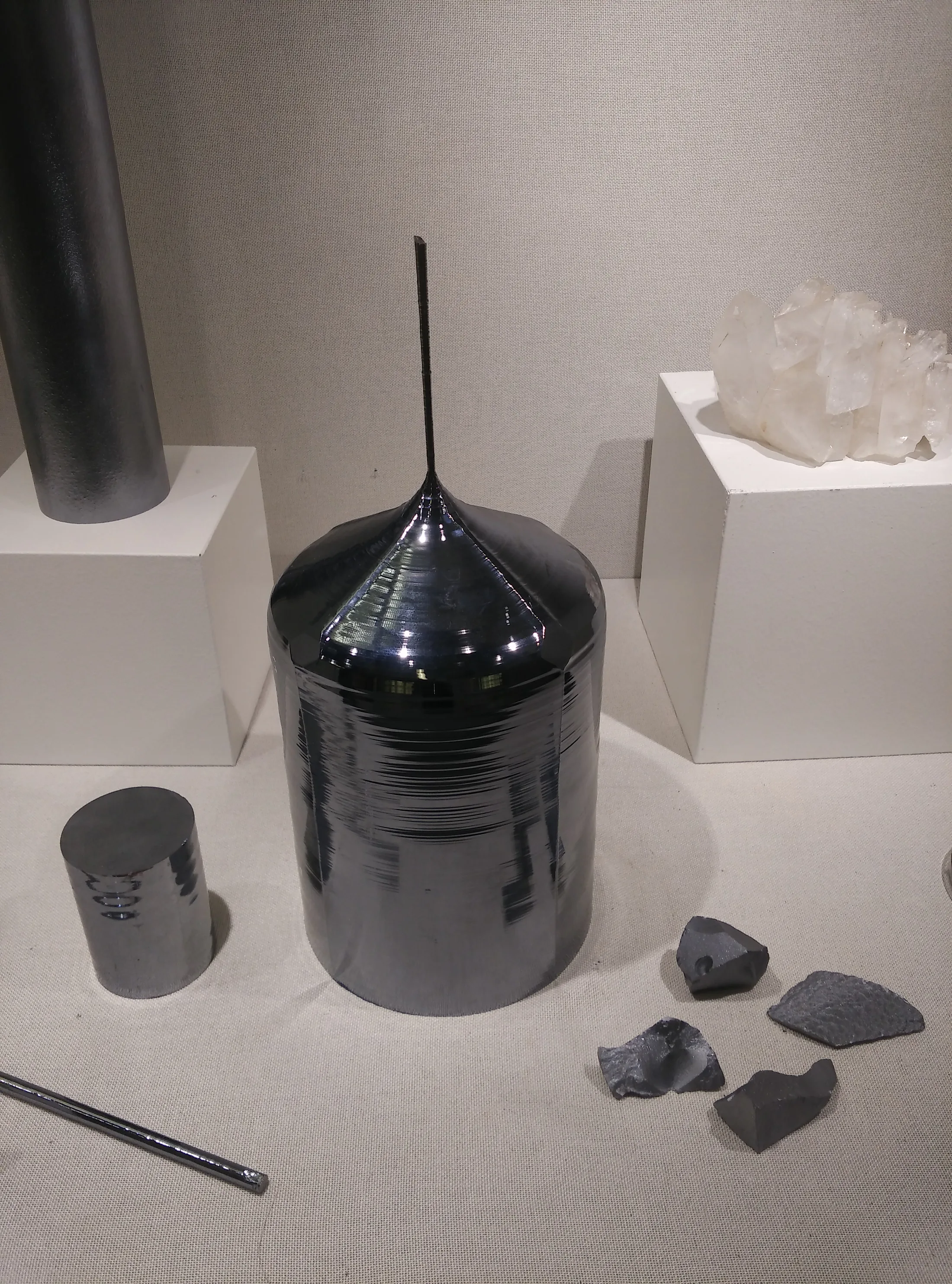

Monocrystalline silicon ingot (Czochralski boule) with seed neck, museum display. Every sensor chip begins as this: a monocrystalline silicon boule with its seed neck, grown atom by atom before being sliced into wafers.

Photo: ArticCynda, via Wikimedia Commons, CC0 (public domain dedication)
From the file

Schematics of fire

The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it.

US 5,885,471 · FIGS. 7(a)-7(c) — The central-rail-stop sensor in three views — assembled block, end-on cross-section, and full exploded stack — showing the piezoelectric beam suspended between a grooved cover and base whose center rails let it flex normally but catch its free end before a shock can snap it.

The assembled sensing-element block with its face electrodes, and an exploded perspective that pulls it apart into top cover, a middle frame carrying the piezoelectric cantilever beam suspended over a cavity, and bottom cover.

US 6,216,537 · FIGS. 7-8 — The assembled sensing-element block with its face electrodes, and an exploded perspective that pulls it apart into top cover, a middle frame carrying the piezoelectric cantilever beam suspended over a cavity, and bottom cover.

A cutaway outline of a human torso with the implanted pacemaker in the chest and its lead snaking through a vein into the heart, setting the clinical scene for where the sensor lives.

US 5,885,471 · FIG. 1 — A cutaway outline of a human torso with the implanted pacemaker in the chest and its lead snaking through a vein into the heart, setting the clinical scene for where the sensor lives.

An electrical block diagram of the pacemaker's internals — microcomputer, digital controller/timer, sense and output amplifiers, RF telemetry, and the activity (accelerometer) block wired into the pacing loop.

US 5,885,471 · FIG. 2 — An electrical block diagram of the pacemaker's internals — microcomputer, digital controller/timer, sense and output amplifiers, RF telemetry, and the activity (accelerometer) block wired into the pacing loop.
